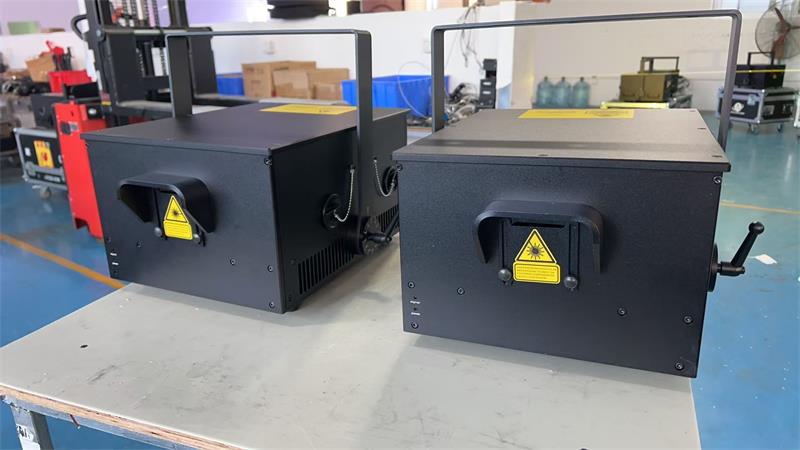

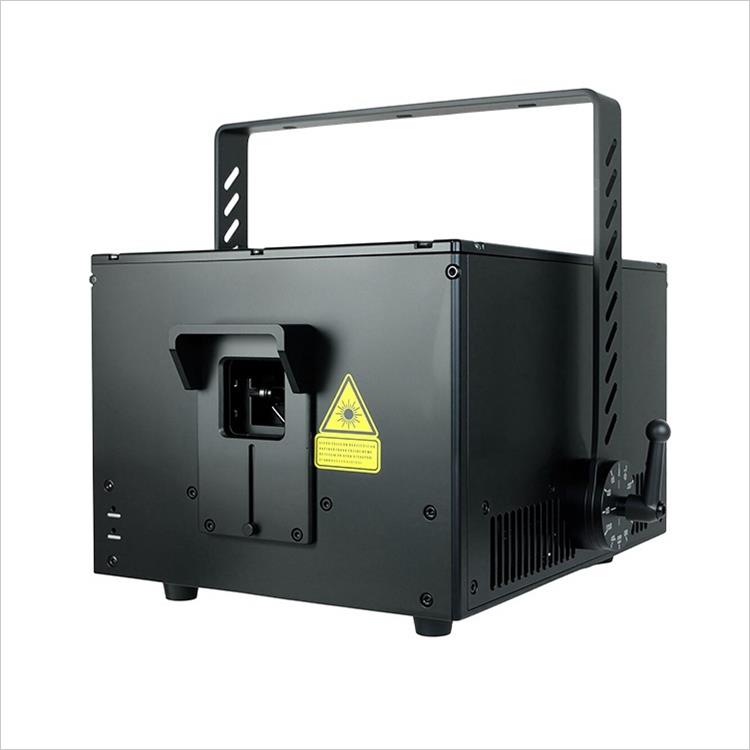

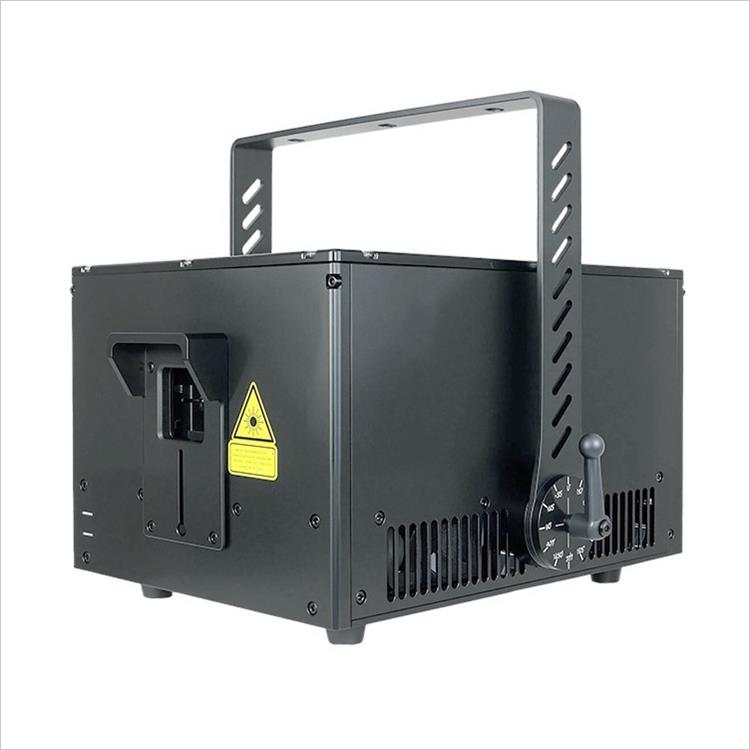

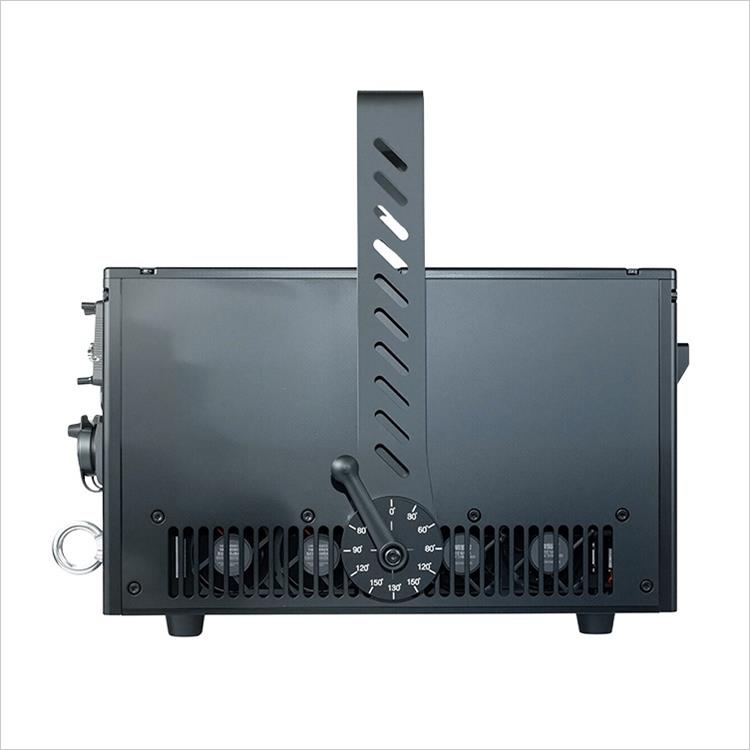

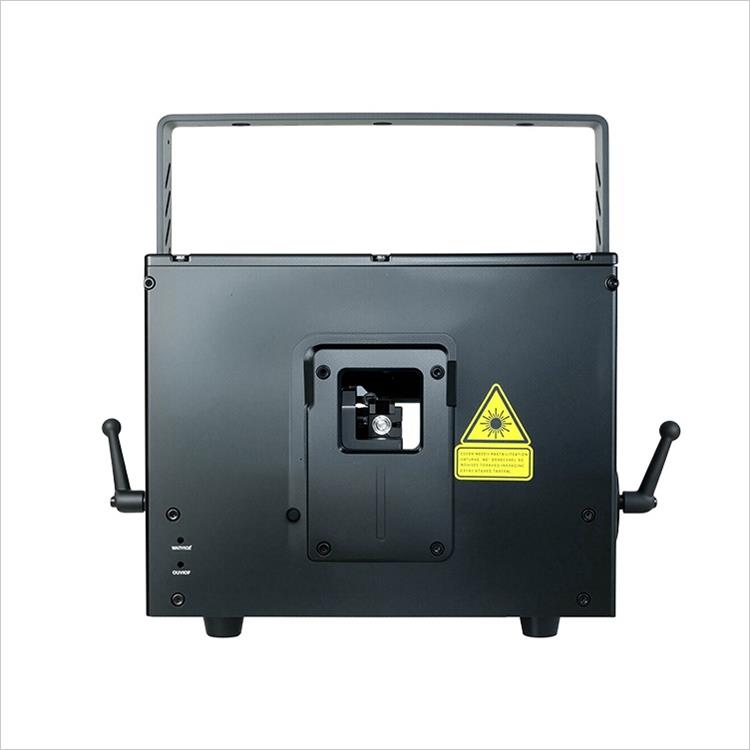

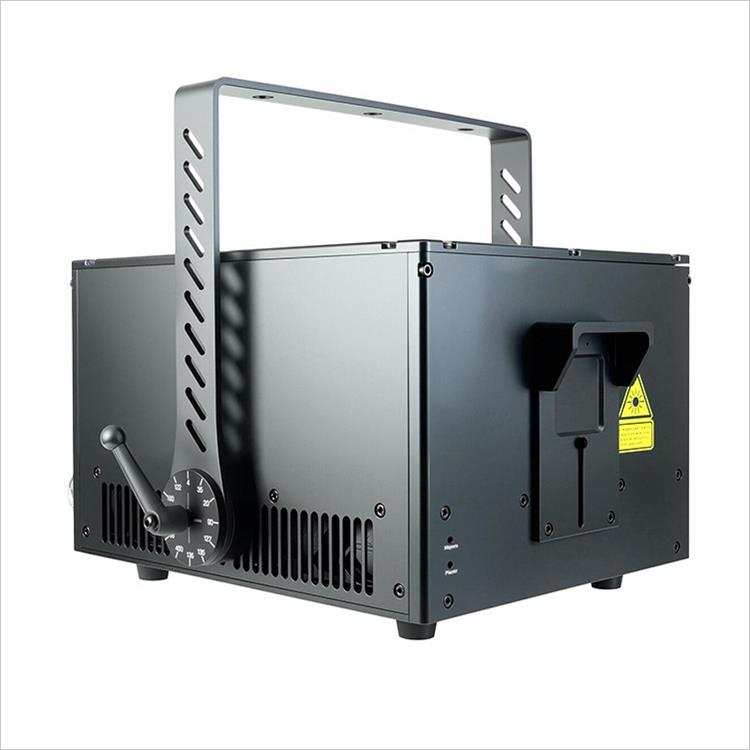

RGB 30W Waterproof Outdoor Laser Projector

Light source :

Diode with FAC (total 32W)
R: 10W/638nm
G: 10W/525nm
B: 12W/445nm

Diode brand :

R: Mitsubishi
G: Nichia
B: Nichia
(all Japanese brands)

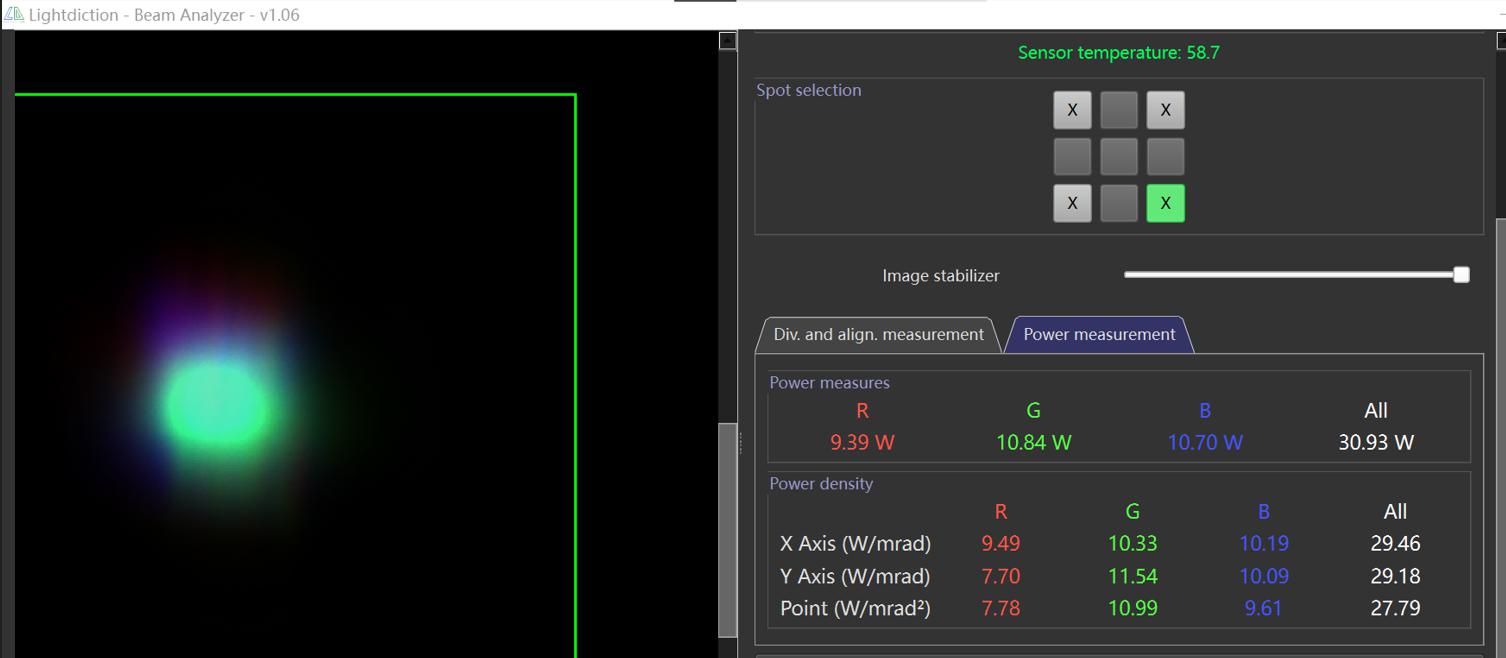

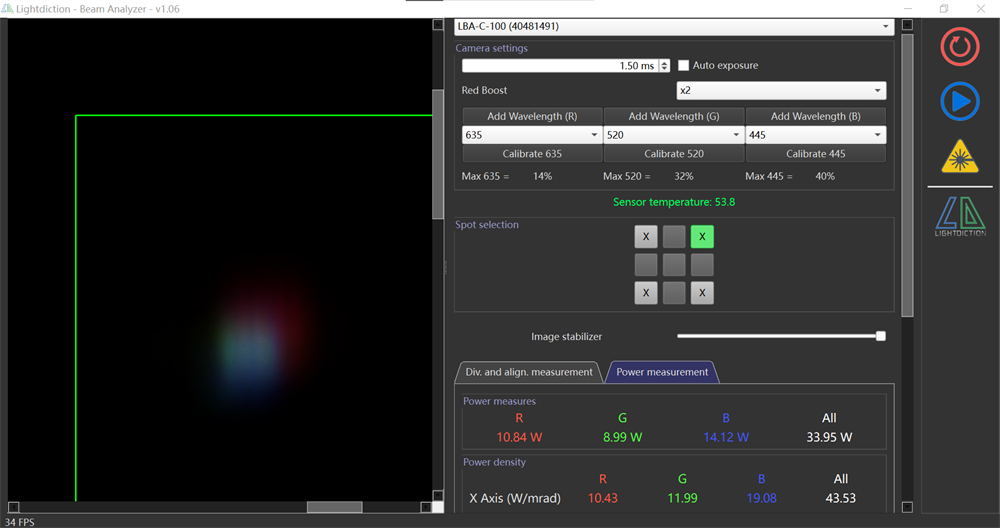

Laser output :

30W

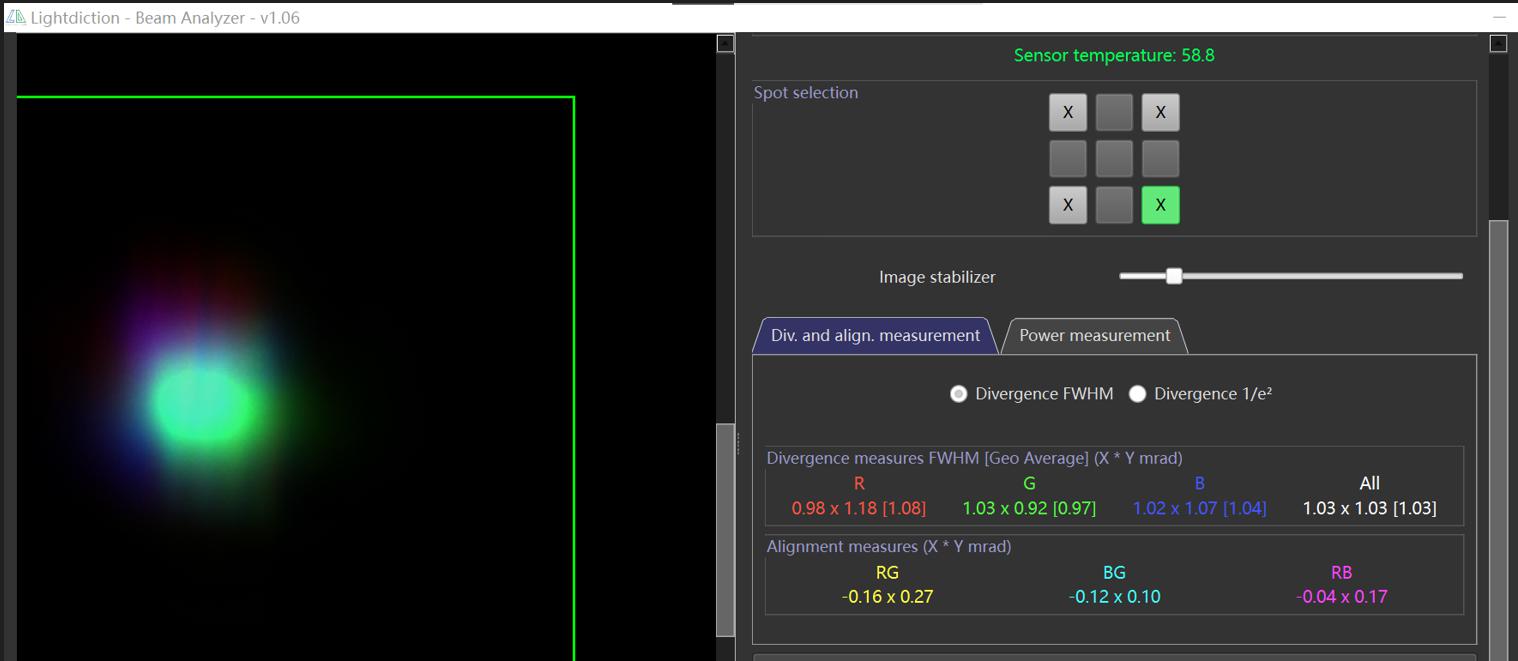

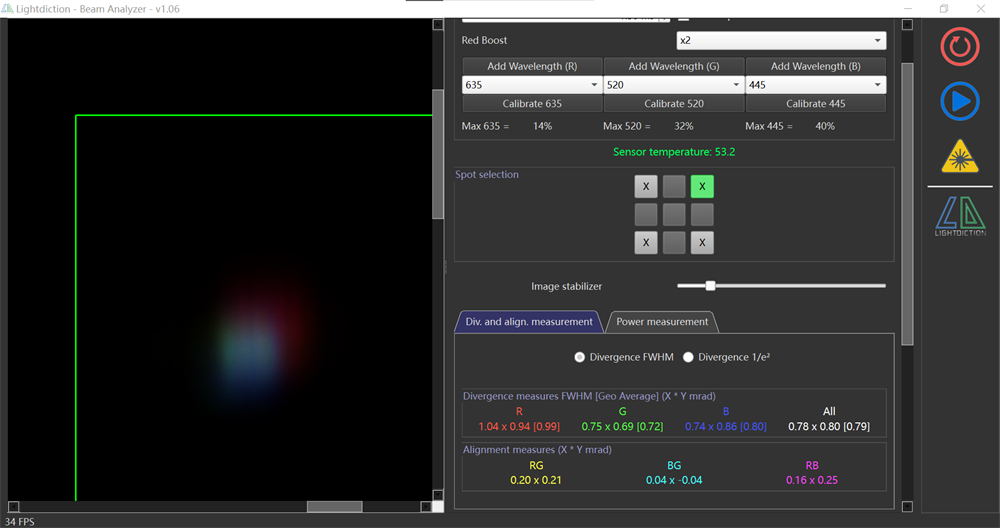

Divergence :

<1.0 mrad (full angle)

Modulation :

Analog

Laser class :

4

Scanner :

50 kpps @ 8°, 60° max

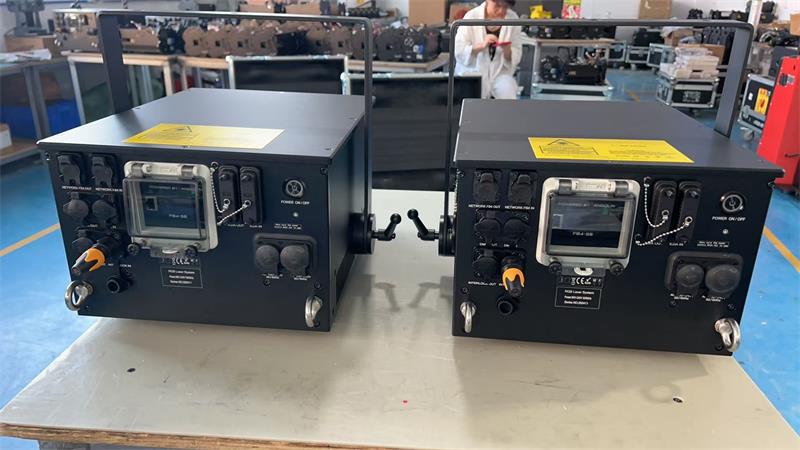

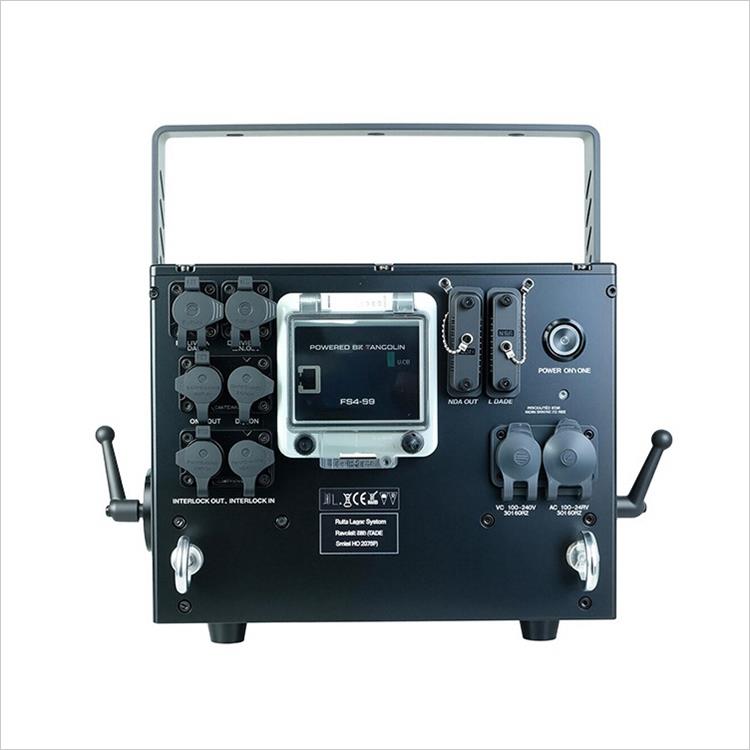

Control :

ILDA in/out, DMX in/out, FB4 (optional)

Power supply:

AC90-240V, 50/60Hz

Power Cons. :

800W

Cooling :

TEC + Heatsink + Fans

IP grade :

IP65 waterproof

Working Tmp:

-20°C ~ 45°C

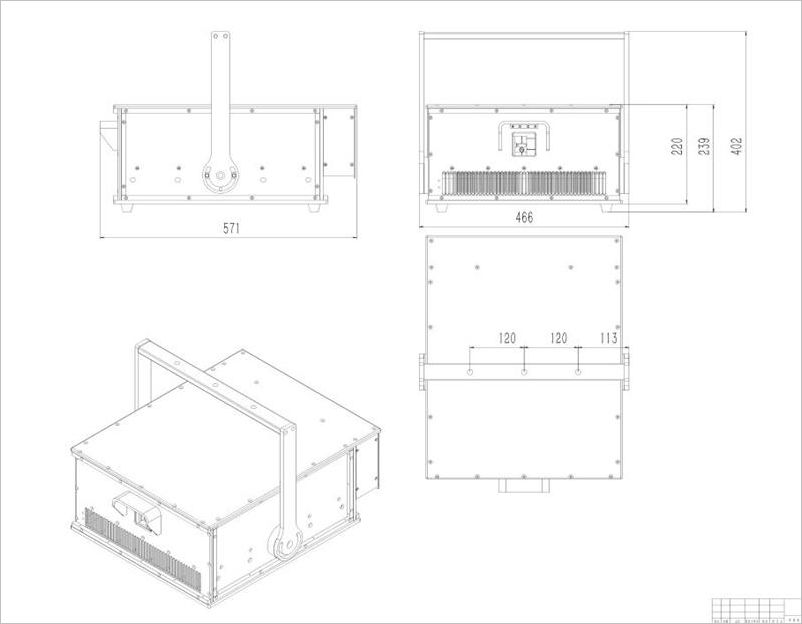

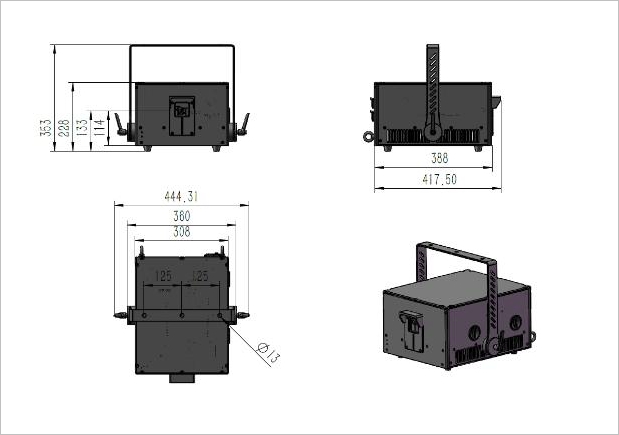

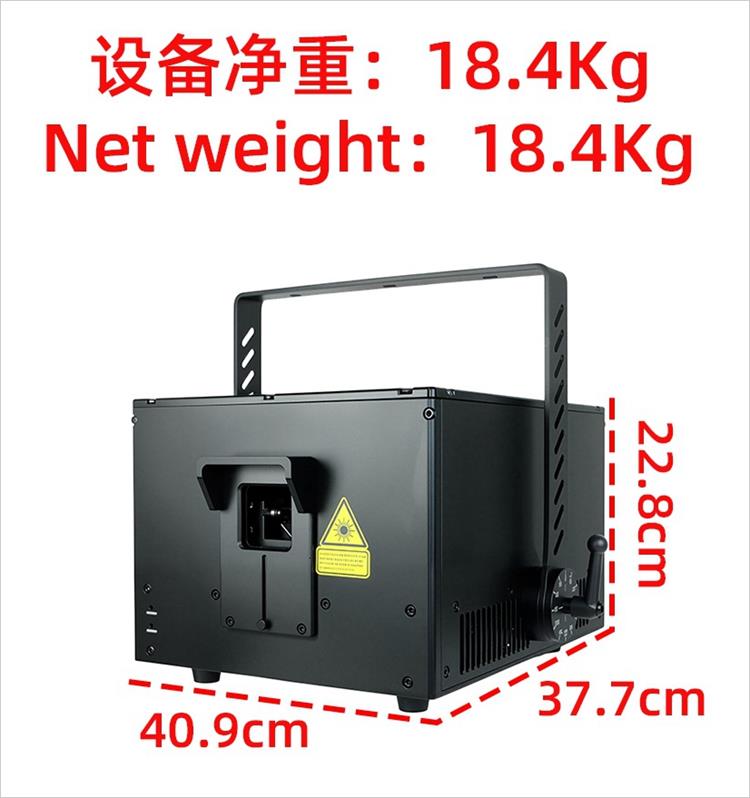

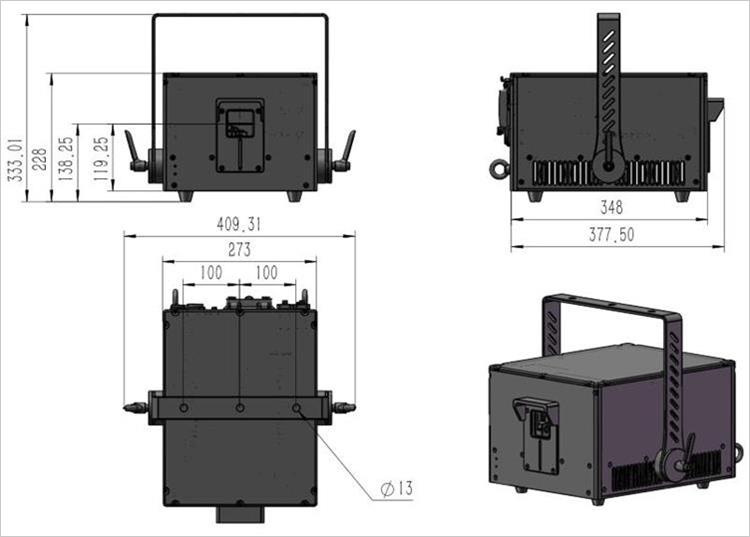

Dimension :

434 x 300 x 247 mm
(without hanging bracket)

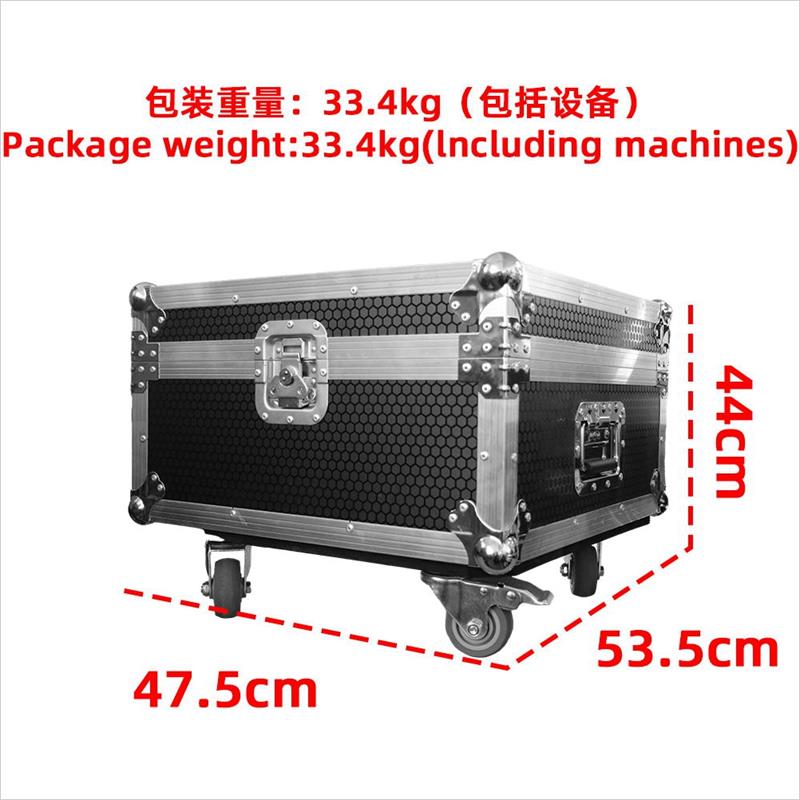

Packing :

Flight case 70x65x52cm

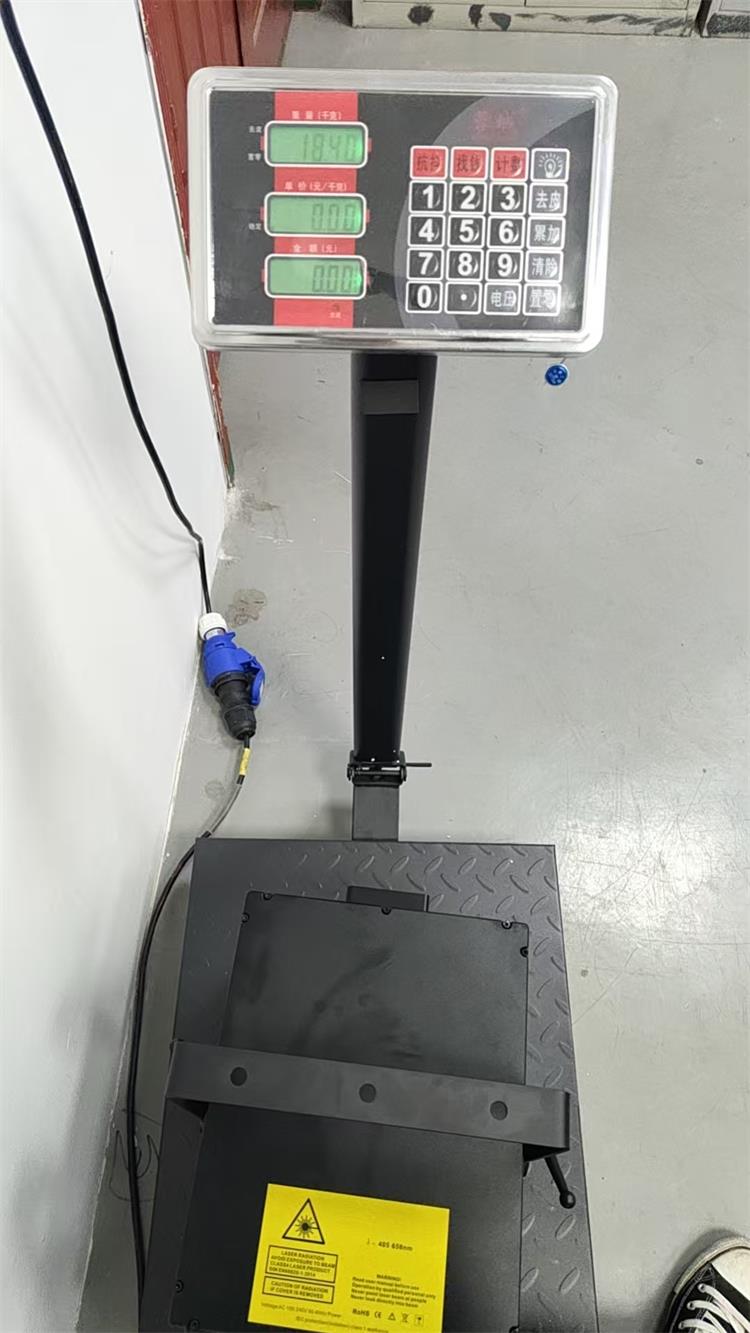

Net weight :

27.8kg

Gross weight :

61kg
