W-RGB20W : RGB 20W Waterproof Animation Stage Laser Light Show System, Laser Projector, Laser Lighting

Product Info

New housing since March 2024 :

Old housing :

W-RGB20W

RGB 20W Waterproof Outdoor Laser Projector

Light source :: Diode with FAC (total 20W)
R: 6W/638nm
G: 6W/525nm
B: 8W/445nm
Diode brand :: R: Mitsubishi
G: Nichia
B: Nichia
(all Japanese brands)

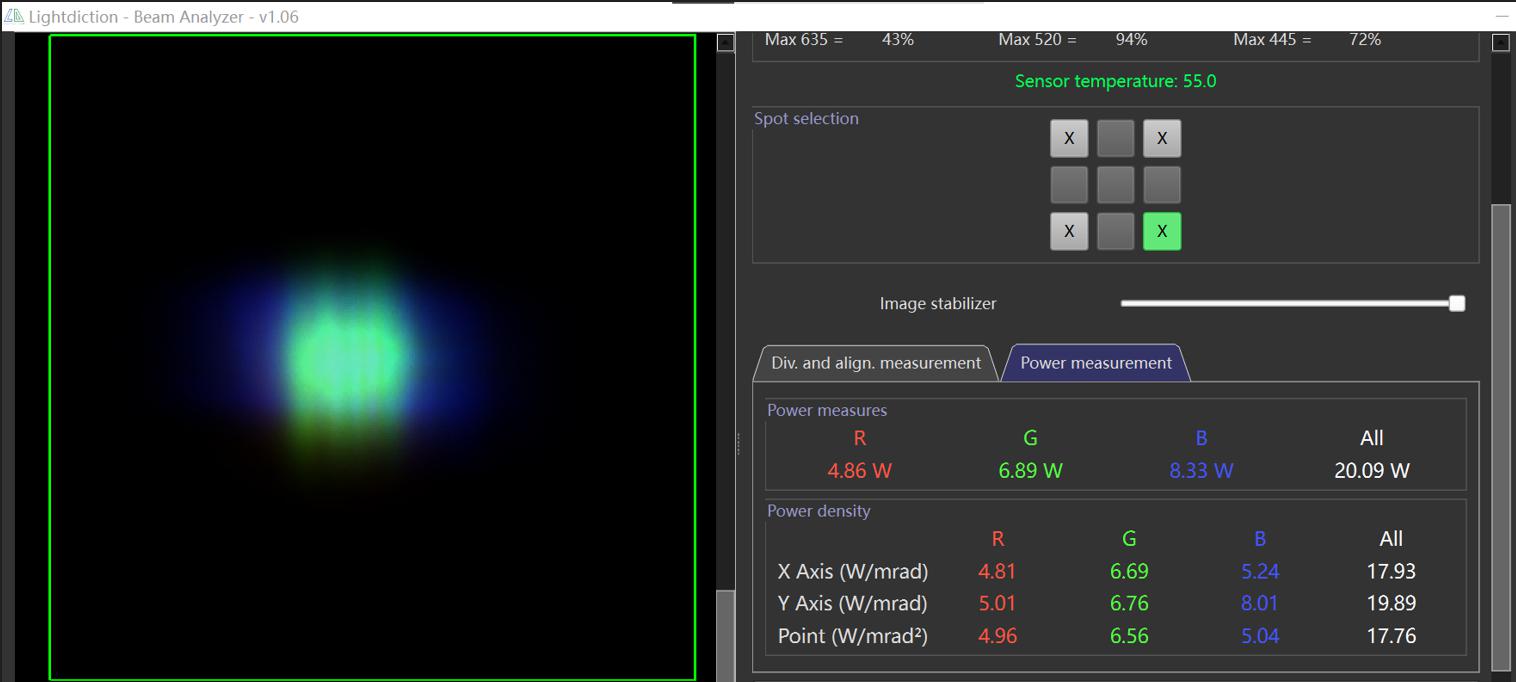

Laser output :: 20W
Divergence :: <1.0 mrad (full angle)
Modulation :: Analog
Laser class :: 4
Scanner :: 50 kpps @ 8°, 60° max
Control :: ILDA in/out, DMX in/out, FB4 (optional)
Power supply:: AC90-240V, 50/60Hz
Power Cons. :: 800W
Cooling :: TEC + Heatsink + Fans
IP grade :: IP65 waterproof
Working Tmp:: -20°C ~ 45°C

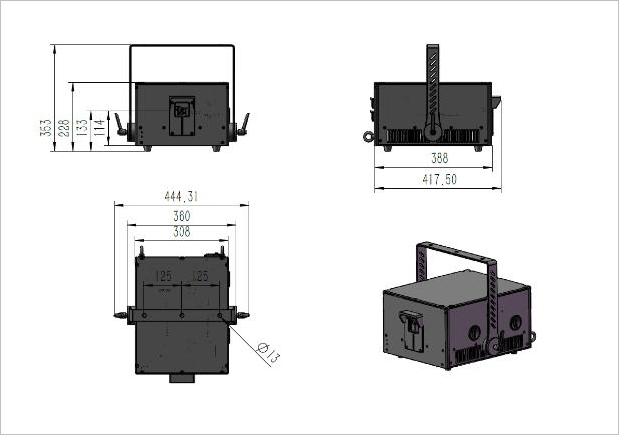

Dimension :: 434 x 300 x 247 mm
(without hanging bracket)
Packing :: Flight case 70x65x52cm
Net weight :: 27.8kg
Gross weight :: 61kg

Video 1 - RGB 20W Light Effect :

Video 2 - RGB 20W On Production Test (9pcs) :

Video 3 - RGB 20W On Production Test (9pcs) :

Video 4 - RGB 20W On Production Test (9pcs) :

Description :

RGB 20W is an animation full color laser show system designed for large-scale indoor shows and also for small-scale outdoor events. Its compact size and extremely powerful output have made it a perfect choice for mobile show applications as well as fixed installation projects.

You can choose hanging or standing bracket for outdoor installation.

For more photos/videos of light effect, please see BLOG.

* Different from other "assembling" factories, we are equipped with laser module & PCB & CNC workshops, all these help us to have faster production with better quality control at lower cost. That is why, after buying and testing our products, clients found they got both premium quality and good price.
