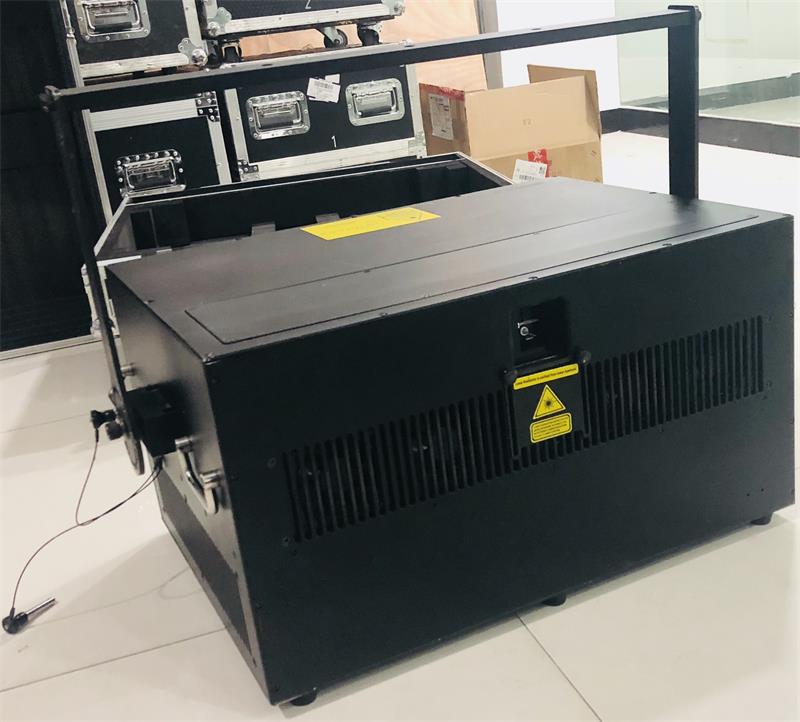

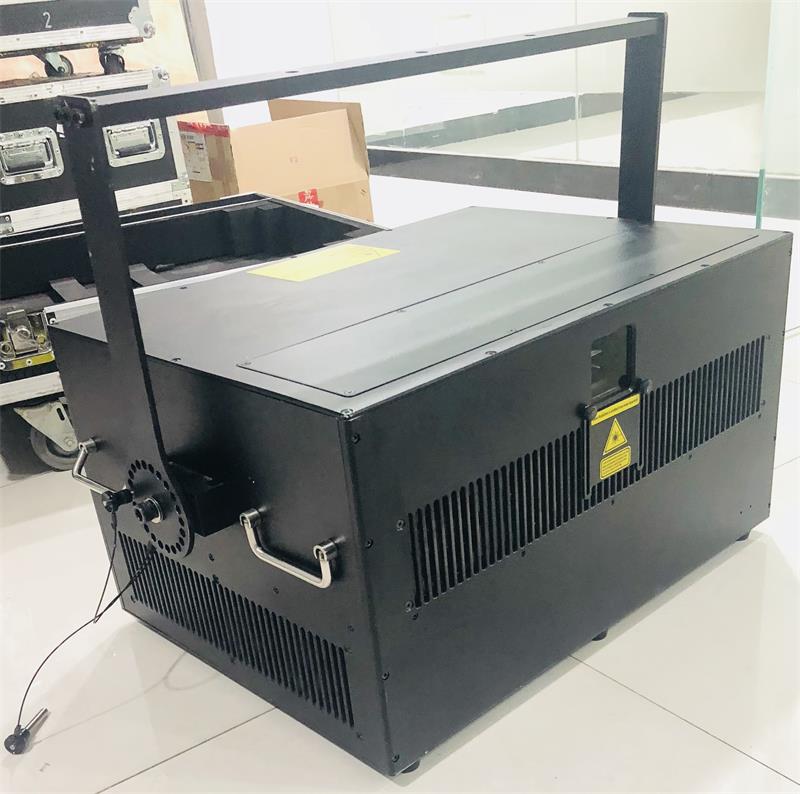

New housing since October 2023 :

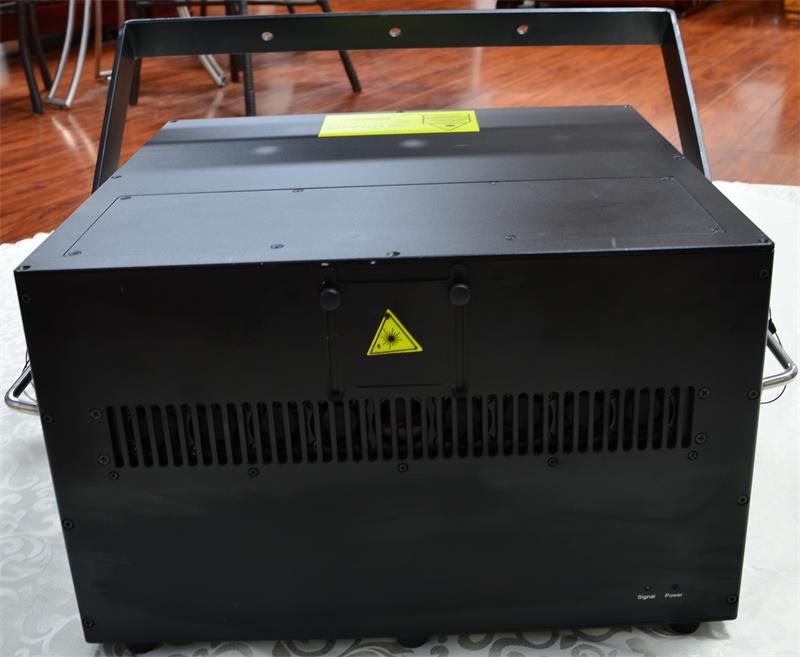

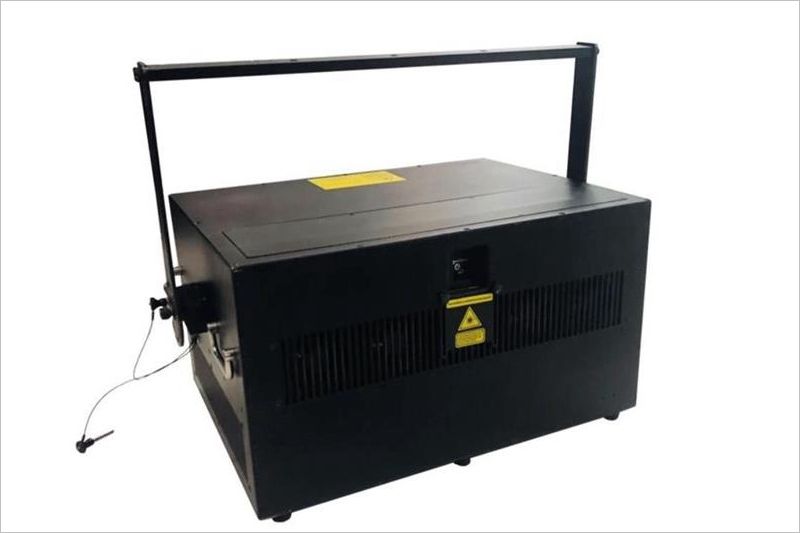

Old housing :

R-RGB80W

Revolution RGB 80W Animation Full Color Stage Laser Show System

Light source :: Diode with FAC (total 80W)
R: 25W/638nm
G: 25W/525nm
B: 30W/445nm
Diode brand :: R: Mitsubishi
G: Nichia
B: Nichia
(all Japanese brands)
Laser output :: 80W
Divergence :: <1.0 mrad (full angle)
Modulation :: Analog
Laser class :: 4
Scanner :: 60 kpps @ 8°, 60° max
Control :: ILDA in/out, DMX in/out, FB4 (optional)
Power supply:: AC90-240V, 50/60Hz
Power Cons. :: 1000W
Cooling :: TEC + Heatsink + Fans
IP grade :: IP54 dust-free
Working Tmp:: -20°C ~ 45°C
Dimension :: 773 x 531 x 296mm (new)
(without hanging bracket)
Packing :: Flight case 74x97x62cm
Net weight :: 77kg
Gross weight :: 119kg

Video 1 - RGB 80W Test Before The Winter Olympic 2022 Opening:

Video 2 - RGB 80W Light Effect On Winter Olympic 2022 Opening:

Video 3 - RGB 80W Light Effect On Winter Olympic 2022 Opening:

Video 4 - RGB 80W Light Effect :

Description :

RGB 80W is a full color laser show system that could meet your requirement for any big outdoor laser shows and installations, with it you can make projection to a mountain or building over 1000 meters away.

For more photos/videos of light effect, please see BLOG.

* Different from other "assembling" factories, we are equipped with laser module & PCB & CNC workshops, all these help us to have faster production with better quality control at lower cost. That is why, after buying and testing our products, clients found they got both premium quality and good price.
