R-RGB100W : RGB 100W Animation Stage Laser Light Show System, Laser Projector, Laser Lighting

Product Info

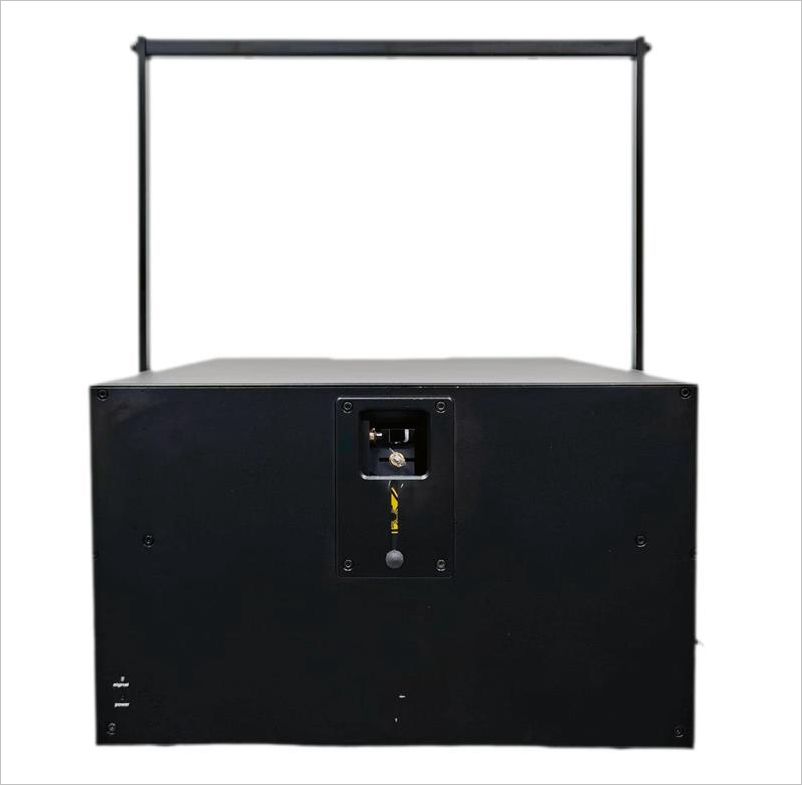

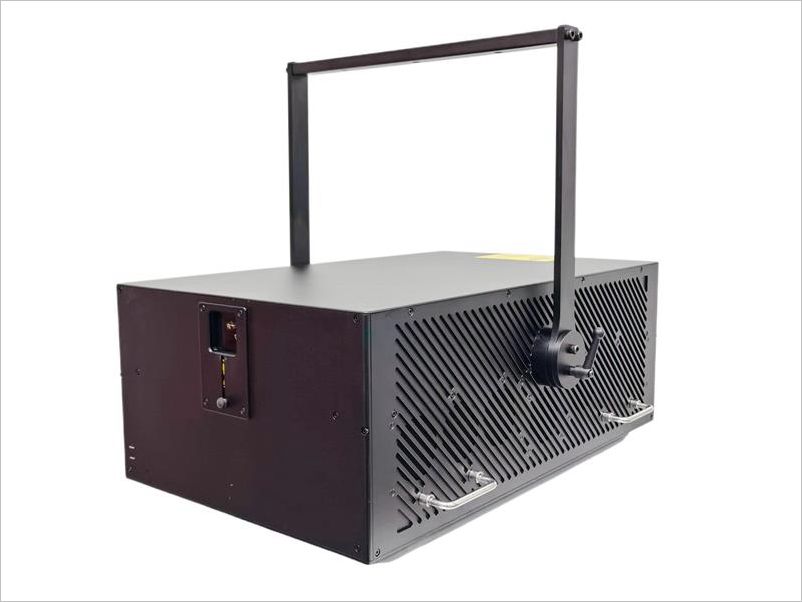

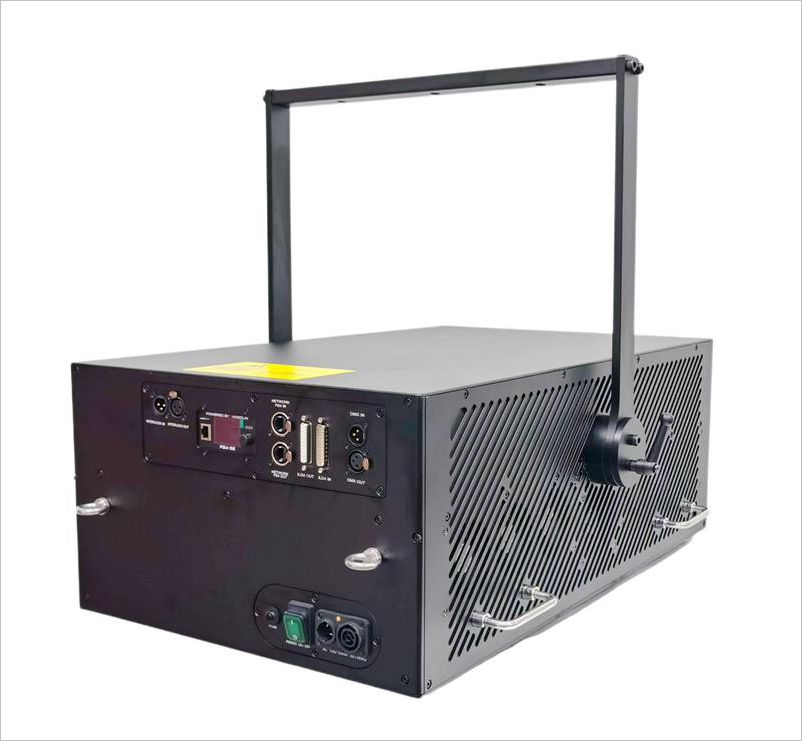

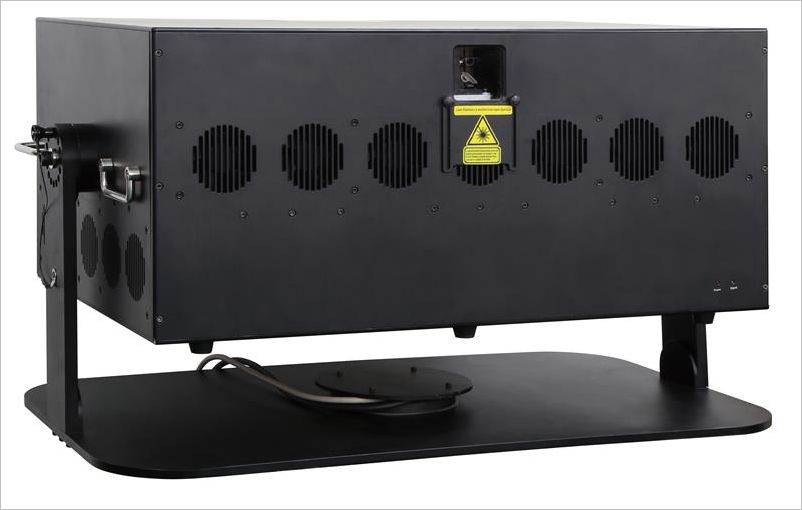

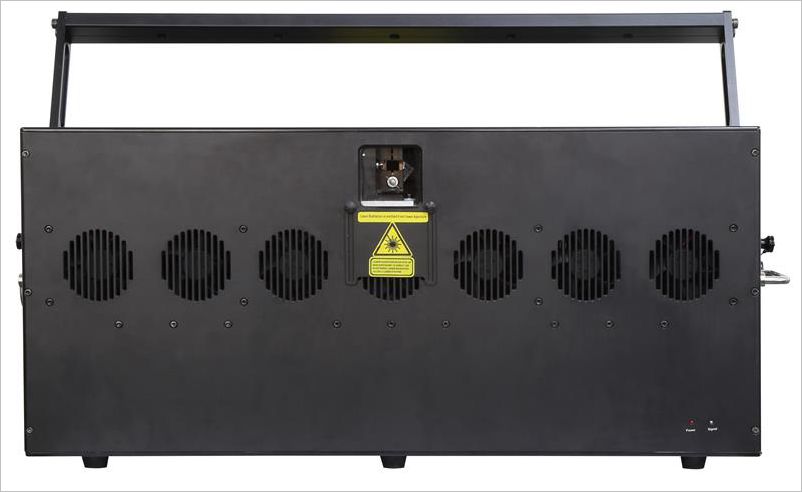

New housing since October 2023 :

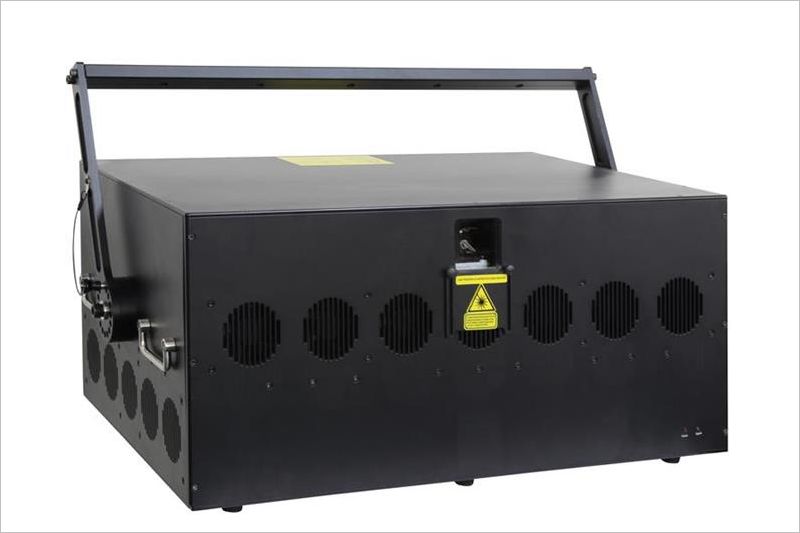

Old housing :

R-RGB100W

Revolution RGB 100W Animation Full Color Stage Laser Show System

Light source :: Diode with FAC (total 100W)
R: 30W/638nm
G: 30W/525nm
B: 40W/445nm
Diode brand :: R: Mitsubishi
G: Nichia
B: Nichia
(all Japanese brands)
Laser output :: 100W
Divergence :: <1.0 mrad (full angle)
Modulation :: Analog
Laser class :: 4
Scanner :: 50 kpps @ 8°, 60° max

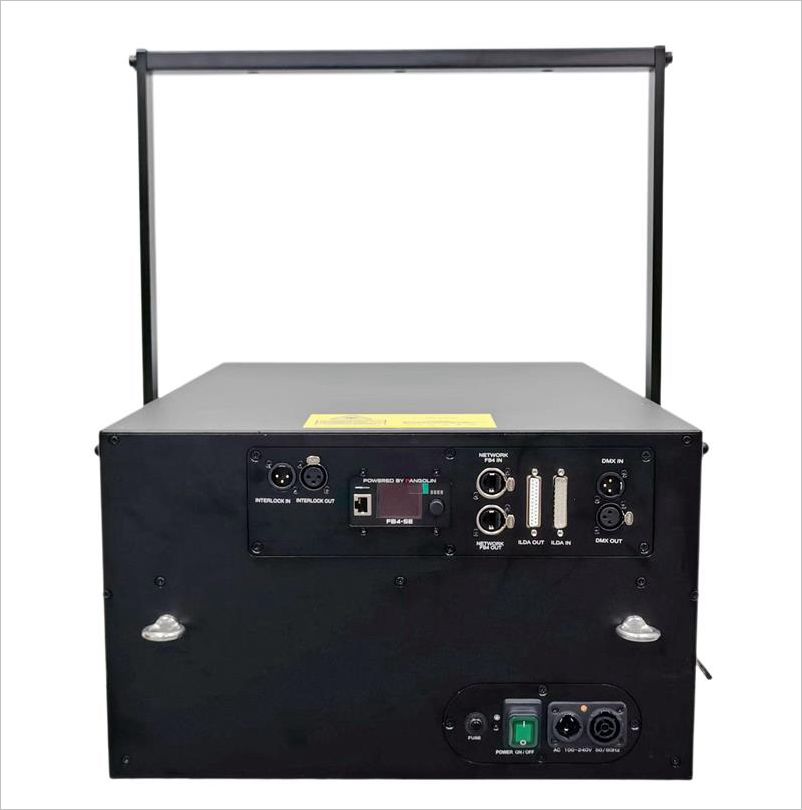

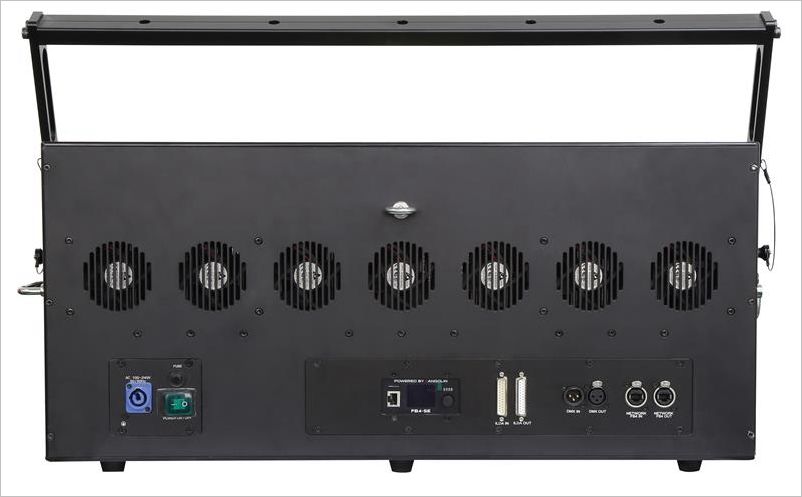

Control :: ILDA in/out, DMX in/out, FB4 (optional)
Power supply:: AC90-240V, 50/60Hz
Power Cons. :: 1000W
Cooling :: TEC + Heatsink + Fans
IP grade :: IP54 dust-free
Working Tmp:: -20°C ~ 45°C

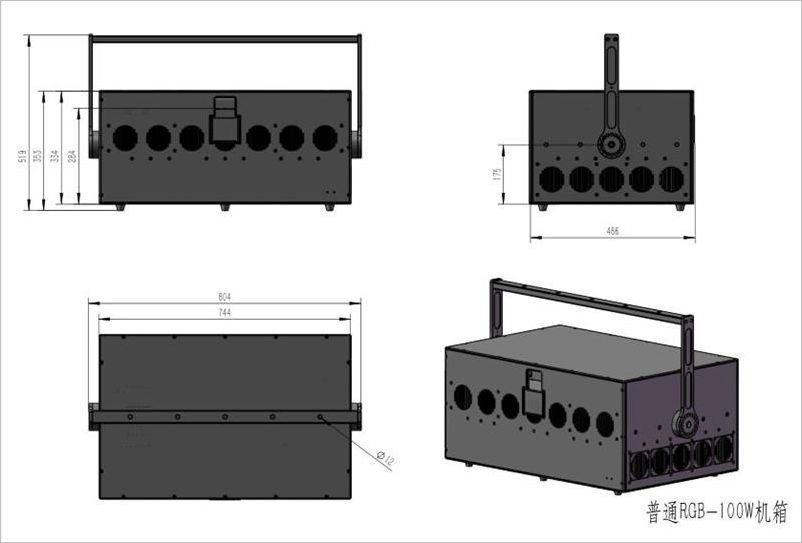

Dimension :: 773 x 531 x 296mm (new)
(without hanging bracket)
Packing :: Flight case 74x97x62cm
Net weight :: 77kg
Gross weight :: 119kg

Video 1 - RGB 100W Light Effect :

Video 2 - RGB 100W Light Effect :

Video 3 - RGB 100W Light Effect :

Video 4 - RGB 100W Light Effect :

Video 5 - RGB 100W Light Effect :

Video 6 - RGB 100W On Program (8pcs) :

Video 7 - RGB 100W On Program (8pcs) :

Description :

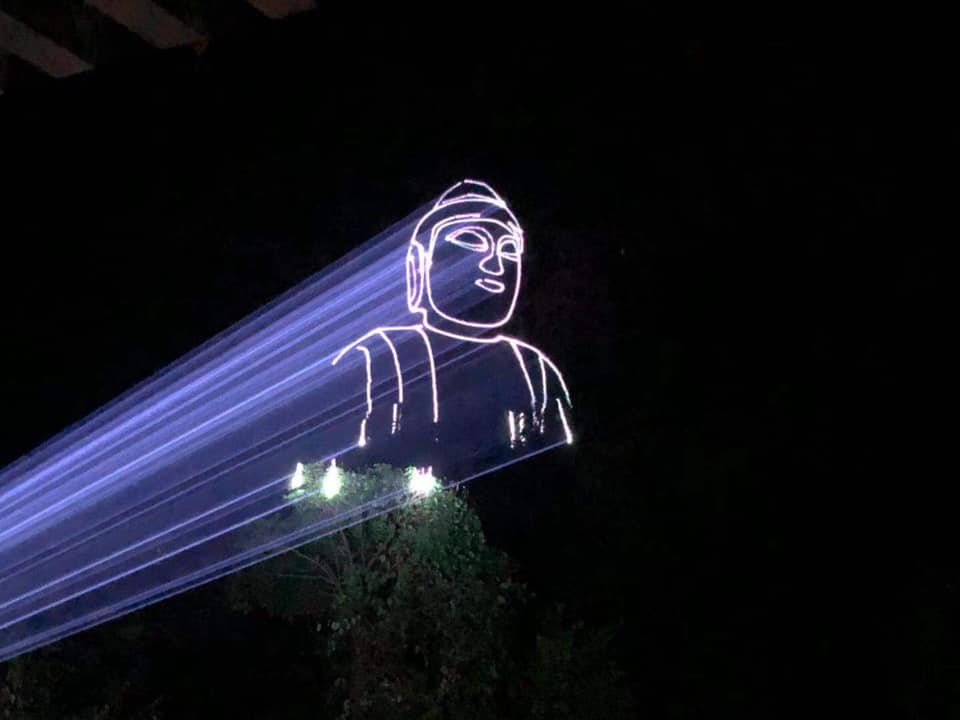

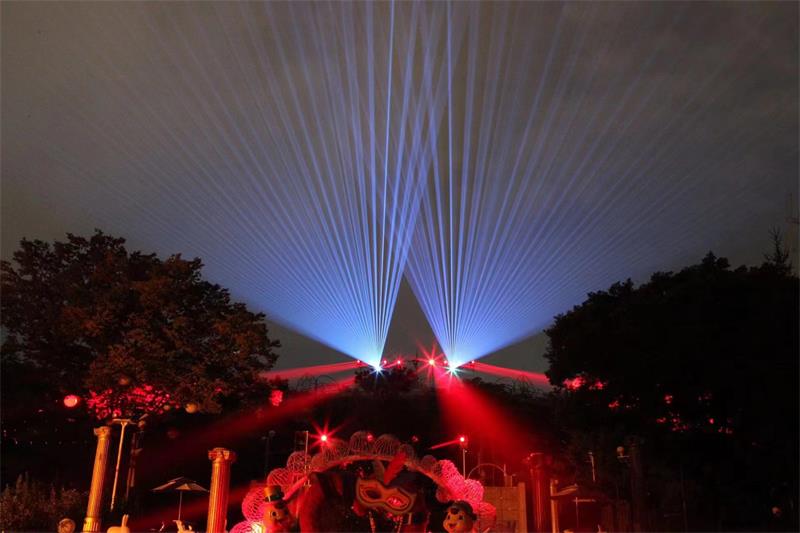

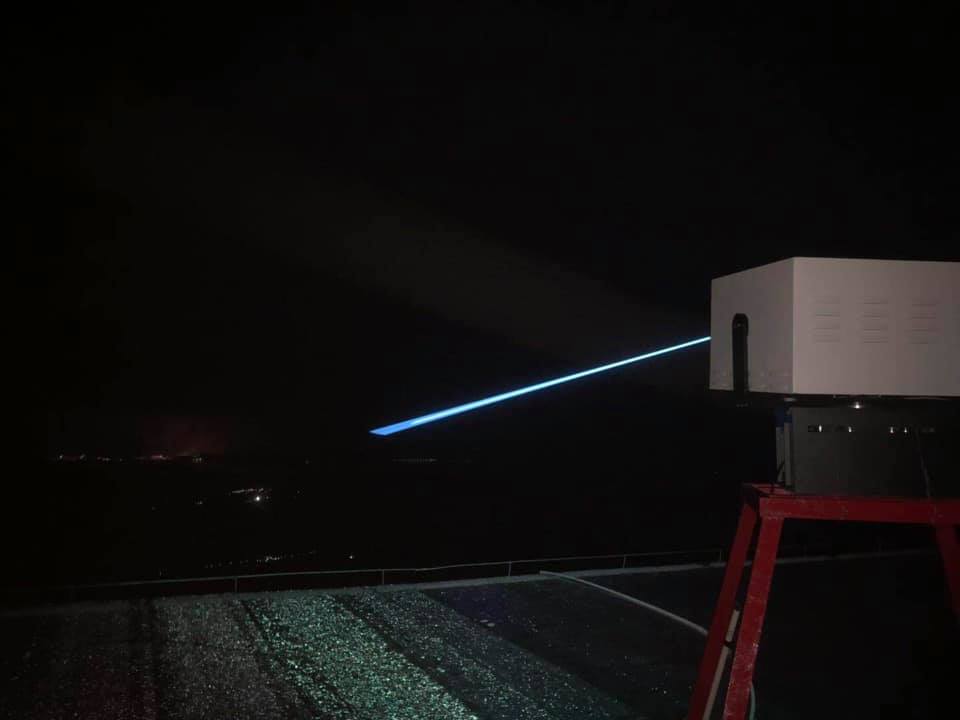

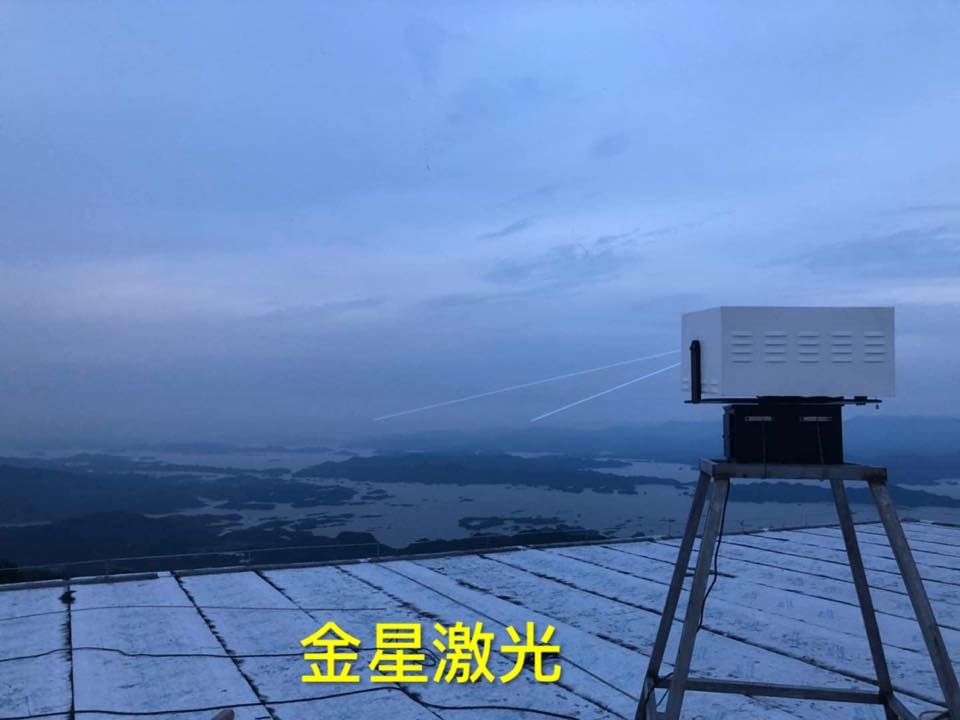

RGB 100W is a very powerful full color laser show system, with it you can make graphic projection to a mountain or building over 1000 meters away, if only one beam it can travel 25km, if a few beams it can travel 10km.

For more photos/videos of light effect, please see BLOG.

* Different from other "assembling" factories, we are equipped with laser module & PCB & CNC workshops, all these help us to have faster production with better quality control at lower cost. That is why, after buying and testing our products, clients found they got both premium quality and good price.
